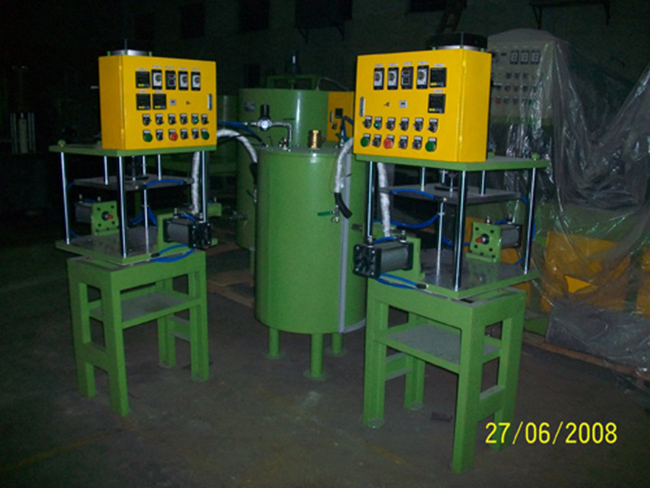

Pneumatic die wax ejector
2018-04-19 679
Pneumatic Fu Dong The failure rate is close to zero
Product features
★ The temperature control of nozzle and wax barrel is independent.
★ Double nozzle assemblyninety°， One person is convenient to operate.
★ Automatic mold removal and clamping system.
★ production gate In addition to the rod, it can also produce marine hardware with less size requirements.
Purpose: making wax mold of hardware accessories.
Specification and standard configuration details
Wax barrel capacity
160L
Inner barrel size
ψfour hundred and fifty×700L
Under pressure
3kg/c㎡
Clamping cylinder
￠100*100*2branch
Setting space
4ninety×4ninety×thirty-five0m/m
Thickness of iron plate
20m/m(electroplating)
Column size
ψthirty-five×570L
Nozzle aperture
ψeight
Die cylinder
FAψone hundred and twenty-five×300L
Temperature control meter
Computer watch
Power supply
220V / 3eight0V / 3ψ
weight
550kg
Use of electricity
4.5KW
Mechanical Dimensions
L 1550 x W 1600 x H 2000
Precautions
★The cooling water configuration must be connected with the machine, which is the responsibility of your company
★Excluding cooling pipeline and piping
★The company reserves the right to change the mechanical design
-
