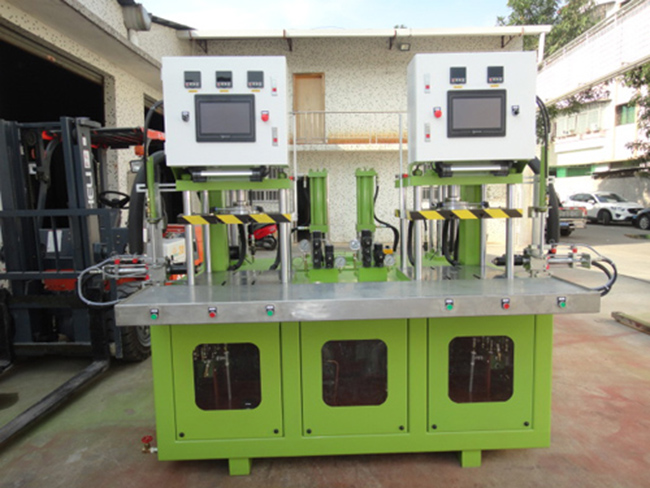

Wax injection machine(10T)
Product features
★ An improved model of traditional wax cylinder type without changing wax cylinder type. In addition to its original function, this machine is equipped with a wax supply system with uniform wax temperature and stable wax output(1Right1)。
★ Wax injection temperature atfifty-two℃~55Between ℃, the performance is reliable.
★ The prepared wax tank capacity can be customized according to customer needs.
Product description
oneThe nozzle can shoot wax on the mold, and you can choose to operate the molds at different positions of the two pairs of nozzles
twoThe heat free system is the only one of our company Create, more than ordinary wax tanks on the market, automatic wax supply & hellip; Other wax injection machines are different. The operation cost saved for customers every day is about:(8KW-18KW)×six。
Assumption: only 6 hours of operation per day → The electrical degree used is:forty-eight~one hundred and eightDegree & rarr; Its electricity charge¥(4threetwo-97.two)Minimum daily (basic electricity charge is not included)!)
threeIn addition to insulating wax, the wax storage barrel also provides heating kerosene for the wax supply system, which can not only save electricity, but also reduce carbon deposition because of the flow of hot kerosene
fourSpecial hot kerosene circuit design, wax temperature uniformity up to90%above
fiveThe shrinkage of wax is similar to that of wax90%above
Specifications and details:
Wax barrel capacity |
1two0L |
Wax extrusion pressure |
0~80kg/c㎡Adjustable |
Die pressure |
0~80kg/c㎡Adjustable |
Setting space |
four hundred and thirty×three hundred and fifty×four hundred(high)) |
Die hydraulic cylinder |
ψone hundred and twenty-five×three hundred and fiftyL |
hydraulic system |
two0L×140kg/c㎡Oil pump +3HPMotor & times;twoGroup |
Cooling water pipe |
1/two"Configure machine |
Power supply |
twotwo0V / 380V / 3Ø |
weight |
two500kg |
Use of electricity |
9KW |
Mechanical Dimensions |
L 1500 x W3000 x Htwo450(mm) |
No heat source Save electricity
matters needing attention
★The company reserves the right to change the mechanical design.
